主要技术参数
电气出口:M20x1.5,NPT1/2
连接尺寸:M20x1.5,NPT1/2
防护等级:IP65

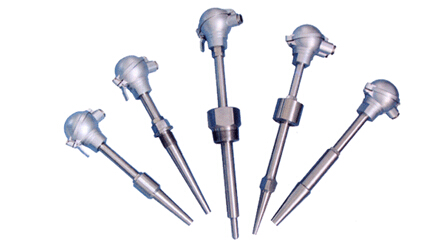

热套热电偶,热套热电偶(阻)型号及规格
型号 |
分度号 |
测温范围 ℃ |
公称压力 |
流速 |
规格 Lxl |
WRN-01T |
K |
0-800 |
≤ 30MPa |
≤ 100m/s |
—— |
WRE-01T |
E |
0-600 |
|||
WZP-01T |
Pt100 |
-200-+500 |
|||
WRN-624 |
K |
0-800 |
≤ 30MPa |
≤ 80m/s |
绝缘式 |
WRE-624 |
E |
0-600 |
|||
WZP-624 |
Pt100 |
-200-+500 |
|||
WRN-625 |
K |
0-800 |
接壳式 |
||
WRE-625 |
E |
0-600 |
|||
WRN-01T |
K |
0-800 |
≤ 10MPa |
—— |
440x230 640x430 840x630 1340x1130 2500x1200 640x430 3000x1500 3500x1700 |
WRE-012T |
E |
0-600 |
|||
WZP-012T |
Pt100 |
-200-+500 |
|||
WRN-12AT |
K |
0-800 |
|||
WRE-12AT |
E |
0-600 |
|||
WZP-12AT |
Pt100 |
-200-+500 |
|||
WRN-013T |
K |
0-800 |
≤ 30MPa |
≤ 100m/s |
380x50 430x100 480x150 |
WRE-013T |
E |
0-600 |
|||
WZP-013T |
Pt100 |
-200-+500 |
|||
WRN-014T |
K |
0-800 |
≤ 10MPa |
≤ 80m/s |
280x50 330x100 380x150 430x200 480x250 530x300 |
WRE-014T |
E |
0-600 |
|||
WZP-014T |
Pt100 |
-200-+500 |
|||
WRN-015T |
K |
0-800 |
≤ 10MPa |
___ |
280x50 330x100 380x150 430x200 480x250 530x300 580x350 630x400 |
WRE-015T |
E |
0-600 |
|||
WZP-015T |
Pt100 |
-200-+500 |
